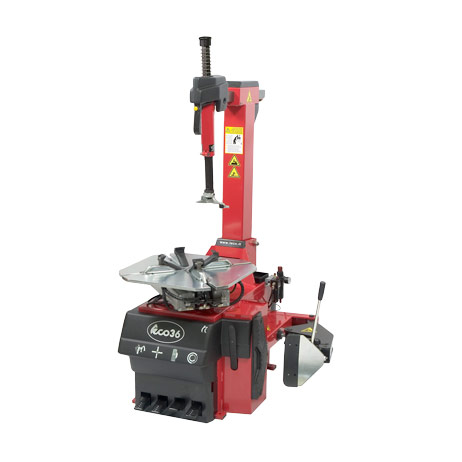

Teco 36 Special Automatic Tyre Changer

Ideal for industry professionals and clamps 10” to 25” wheel diameters without any adapter or adjustment. Comes with a patented bead breaker arm and integrated head quick change device, double regulation system to take off clearances, double acting bead breaker cylinder, extractable pedal unit and special clamping system geometry. Ideal for tough or low profile tyres. Available in t.i. version complete with the tubeless inflating device, in 2sp version with two speed turntable and in P version with pneumatic control of the working arm. Standard equipped with plastic protections for all the elements which could cause damages to the rim, it is usually supplied with the auxiliary device UPH and BPS.

Universal pneumatic patented device ideal to handle particularly tough or low profiled tyres such as Run-Flat tyres. PLEASE NOTE: This video is a demonstration of the UPS and BPS attachment being used on a Teco 37.

Description

Ideal for industry professionals and clamps 10” to 25” wheel diameters without any adapter or adjustment. Comes with a patented bead breaker arm and integrated head quick change device, double regulation system to take off clearances, double acting bead breaker cylinder, extractable pedal unit and special clamping system geometry. Ideal for tough or low profile tyres. Available in t.i. version complete with the tubeless inflating device, in 2sp version with two speed turntable and in P version with pneumatic control of the working arm. Standard equipped with plastic protections for all the elements which could cause damages to the rim, it is usually supplied with the auxiliary device UPH and BPS.

Universal pneumatic patented device ideal to handle particularly tough or low profiled tyres such as Run-Flat tyres. PLEASE NOTE: This video is a demonstration of the UPS and BPS attachment being used on a Teco 37.

Additional information

Vehicle
Condition

Clamping capacity
10"-25"
External clamping
10"-22"
Internal clamping
13"-25"
Max wheel diameter
1060 mm (42")
Max wheel width
370 mm (14,5")
Bead breaker cylinder force
2900 kgf (6395 lbf)
Working pressure
8-10 bar (116-145 psi)
3-phase electric motor
0,55 kw (0,75 hp)
1-phase electric motor
0,75 kw (1,0 hp)
Noise level
< 70 ± 3 db(a)
Net weight
255 kg (560 lbs)
Net weight - t.I. Version
270 kg (595 lbs)
UPH A28
Patented pneumatic device which helps the operator to handle particularly tough or low profile tyres;
BPS
Second auxiliary pressor for low profile tyres to be assembled on UPH;
PLS 2
Pneumatic wheel lift complete with roller rest;
KIT PO
Tool tray kit;
UWA 24
Adapters to increase the turntable clamping capacity.
