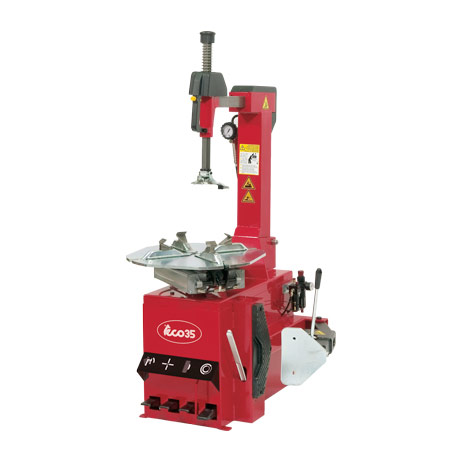

Teco 35 Automatic Tyre Changer

Ideal for professional repair shops/ tyre shops. The self-centering turntable allows the clamping power to remain constant regardless of rim diameter. The high vertical post, wide casing and robust design makes it ideal for tough or low profile tyres. Available also in t.i. version with the tubeless inflating device and standard equipped with plastic protections for all the elements which could cause damages to the rim.

Universal pneumatic patented device ideal to handle particularly tough or low profiled tyres such as Run-Flat tyres. PLEASE NOTE: This video is a demonstration of the UPS and BPS attachment being used on a Teco 37.

Description

Ideal for professional repair shops/ tyre shops. The self-centering turntable allows the clamping power to remain constant regardless of rim diameter. The high vertical post, wide casing and robust design makes it ideal for tough or low profile tyres. Available also in t.i. version with the tubeless inflating device and standard equipped with plastic protections for all the elements which could cause damages to the rim.

Universal pneumatic patented device ideal to handle particularly tough or low profiled tyres such as Run-Flat tyres. PLEASE NOTE: This video is a demonstration of the UPS and BPS attachment being used on a Teco 37.

Additional information

Vehicle
Condition

Clamping capacity
10''-23''
External clamping
10"-20"
Internal clamping
13"-23"
Max wheel diameter
1000 mm (39,5")
Max wheel width
320 mm (12,5")
Bead breaker force
2800 kgf (6175 lbf)
Working pressure
8-10 bar (116-145 psi)
3-phase electric motor
0,55 kw (0,75 hp)
1-phase electric motor
0,75 kw (1,0 hp)
Noise level
< 70 ± 3 db(a)
Net weight
205 kg (450 lbs)
Net weight - t.I. Version
215 kg (475 lbs)
UPH A22
Patented pneumatic device which helps the operator to handle particularly tough or low profile tyres;
BPS
Second auxiliary pressor for low profile tyres to be assembled on UPH;
KIT PO
Tool tray kit;
UMA
Universal motorcycle adapters.
